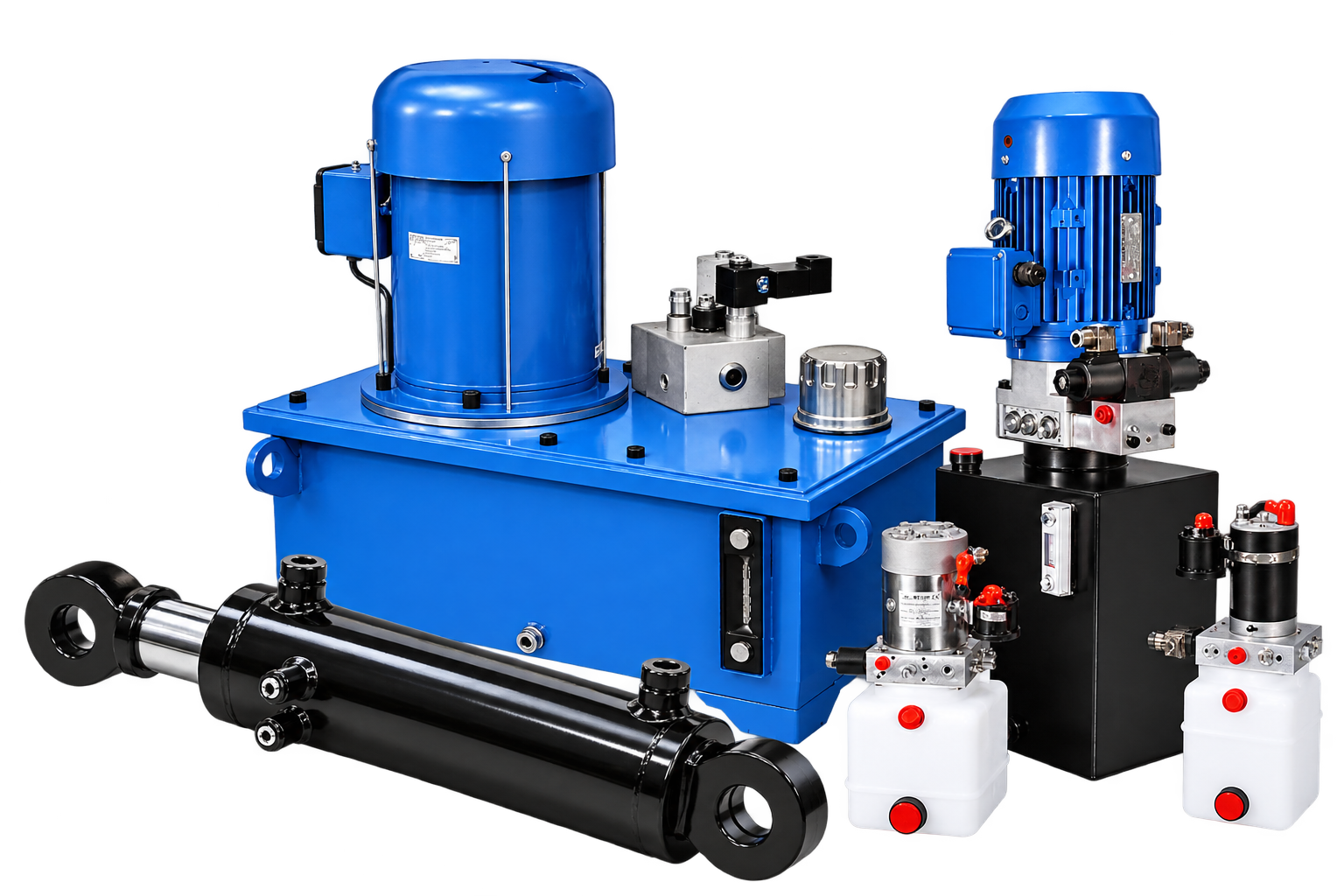

Hydraulic Cylinders & Power Packs
For hydraulic scissor lifts. Engineered for safe, smooth and powerful lifting in automotive, industrial, warehouse and material handling applications.
- High load capacity
- Smooth, stable operation
- Long operational life
- Low maintenance
- Safety and reliability
Choose the Right Hydraulic Components
Reference ranges for cylinders, imported power packs and Indian power packs. Final selection depends on your lift design and duty cycle.
Hydraulic Cylinders
For hydraulic scissor lifts
Features
- High load capacity and stable operation
- Hard chrome plated rod
- Leak resistant seals
- Low maintenance, long service life
Reference specifications
- Type
- Double acting
- Working pressure
- 160–250 bar
- Max pressure
- 300 bar
- Bore diameter
- 50–150 mm
- Rod diameter
- 30–90 mm
- Stroke length
- Up to 2000 mm
- Application
- Hydraulic scissor lift
Imported Power Pack
Compact solution for scissor lifts
Features
- Compact design and efficient gear pump
- Integrated relief and check valve
- Overload protection
- Easy installation, heavy duty performance
Reference specifications
- Motor power
- 1–3 HP
- Voltage
- 415V AC / 3 phase
- Pump type
- Gear pump
- Flow rate
- 8–25 LPM
- Working pressure
- 180–250 bar
- Tank capacity
- 25–80 L
- Oil type
- VG 68
- Cooling
- Air cooled
Indian Power Pack
Economical and reliable configuration
Features
- Economical, durable design
- Reliable Indian components
- Efficient hydraulic circuit
- Easy maintenance and compact footprint
Reference specifications
- Motor power
- 1–10 HP
- Voltage
- 220V / 415V
- Pump type
- Gear pump
- Flow rate
- 6–70 LPM
- Working pressure
- 210 bar
- Tank capacity
- 20–100 L
- Oil type
- VG 68
- Cooling
- Air cooled
Built for Reliable Lifting
Application based hydraulic components and support for your project.
Components selected for the intended lift load and operating cycle.
Cylinders and power packs designed for demanding use.
Specify cylinder dimensions, motor, pump, tank and controls.
Testing and inspection before dispatch.
Secure packaging and delivery coordination.
Help with product and application requirements.
Planning a Hydraulic Scissor Lift?
Share your load capacity, lift height and power supply for a suitable configuration.
Request a Quote
Tell us about your hydraulic scissor lift application.
Assurance Hydrotech
Phone: +91 99754 20208
Email: assurancehydrotech@gmail.com
Location: Shantinagar, Bhosari, Pimpri-Chinchwad, Maharashtra 411026
Hydraulic cylinders for scissor lifts
Scissor lifts cycle thousands of times under load. Our cylinders for scissor lifts are built for high cycle life — precision-honed barrels, hard-chrome rods and seals selected for continuous duty.
| Parameter | Capability |
|---|---|
| Types | Single/double-acting, custom bore & stroke |
| Operating pressure | Up to 350 bar |
| Rod | Hard chrome plated for long seal life |
| Mounting | Pin-eye / clevis to suit scissor arms |
| Testing | 100% pressure-tested before dispatch |
| Warranty | 3 years |
Why lift manufacturers choose us:
- Cylinders matched to your scissor geometry and load chart
- Synchronized multi-cylinder options for wide platforms
- Replacement cylinders from sample, drawing or photos
- Pan-India supply from Pune
Frequently asked questions
Side loading, contaminated oil and undersized rods are the usual causes. We size rods and seals for your actual duty cycle.
Yes — we regularly engineer replacements for imported scissor lift cylinders from samples or drawings.
Most scissor lifts use single-acting cylinders (gravity lowering); double-acting where powered lowering or holding is needed.
Request a quote
Share your lift capacity, platform size and raised height — get an engineered quotation.
