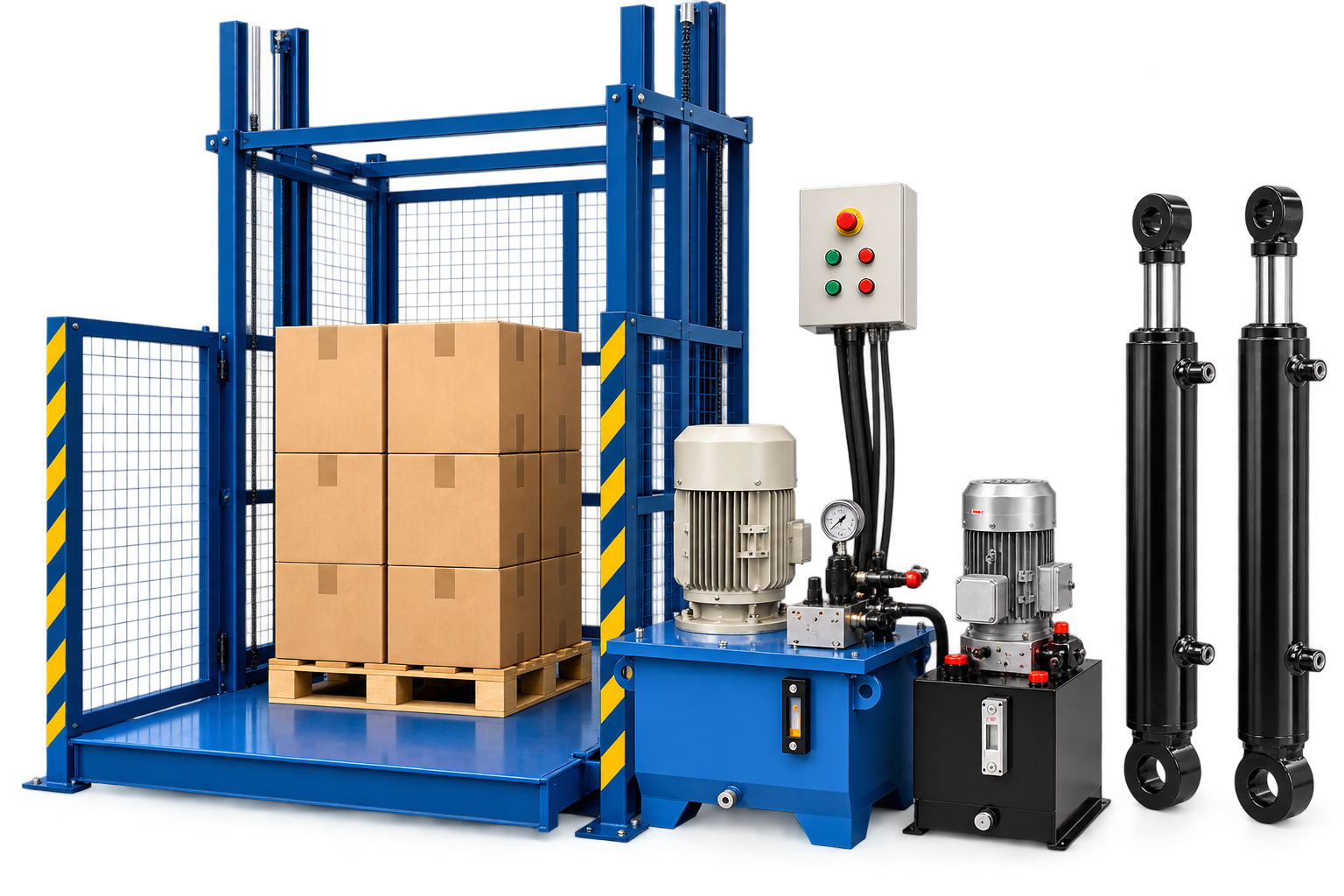

Hydraulic Cylinders & Power Packs
For goods lifts. Engineered for smooth, reliable material movement in warehouses, factories, commercial buildings and industrial facilities.
- High load capacity
- Smooth, stable operation
- Long operational life
- Low maintenance
- Safety and reliability
Choose the Right Hydraulic Components
Reference ranges for goods lift cylinders, imported power packs and Indian power packs. Final selection depends on load, lift travel and duty cycle.
Hydraulic Cylinders
For goods lifts
Features
- Heavy duty design
- High strength steel tube
- Hard chrome plated EN8 rod
- Leak resistant seals
- Smooth lifting for continuous duty
Reference specifications
- Bore diameter
- 50–150 mm
- Cylinder rod
- 40–100 mm
- Cylinder stroke
- Up to 5000 mm
- Tube material
- ST-52
- Rod material
- EN8, hard chrome plated
- Application
- Goods lift
Imported Power Pack
Compact unit for goods lifts
Features
- Compact and reliable design
- High efficiency gear pump
- Integrated relief and check valve
- Overload protection
- Easy installation and smooth operation
Reference specifications
- Tank capacity
- 20–80 L
- Motor power
- 1–3 HP
- Voltage
- 415V AC / 3 phase
- Pump type
- Gear pump
- Flow rate
- 6–25 LPM
- Working pressure
- 100–210 bar
- Oil type
- VG 68
- Cooling
- Air cooled
- Application
- Goods lift
Indian Power Pack
Economical and reliable goods lift unit
Features
- Robust, durable design
- Reliable Indian components
- Efficient hydraulic circuit
- Easy maintenance
- Compact footprint
Reference specifications
- Tank capacity
- 20–100 L
- Motor power
- 1–10 HP
- Voltage
- 415V AC / 3 phase
- Pump type
- Gear pump
- Flow rate
- 6–70 LPM
- Working pressure
- 100–210 bar
- Oil type
- VG 68
- Cooling
- Air cooled
- Application
- Goods lift
Built for Reliable Lifting
Application based hydraulic components and support for your project.
Components selected for the intended lift load and operating cycle.
Cylinders and power packs designed for demanding use.
Specify cylinder dimensions, motor, pump, tank and controls.
Testing and inspection before dispatch.
Secure packaging and delivery coordination.
Help with product and application requirements.
Planning a Goods Lift Project?
Share your load capacity, lift travel, duty cycle and power supply for a suitable hydraulic configuration.
Request a Quote
Tell us about your goods lift project and we will review the hydraulic requirements.
Assurance Hydrotech
Phone: +91 99754 20208
Email: assurancehydrotech@gmail.com
Location: Shantinagar, Bhosari, Pimpri-Chinchwad, Maharashtra 411026
Hydraulic systems for goods lifts
Goods lifts move tonnes between floors, all day. Our hydraulic cylinders and power packs for goods lifts are built for continuous duty — smooth lifting, reliable holding, and safe lowering even under full rated load.
| Parameter | Capability |
|---|---|
| Cylinder types | Single/double-acting, custom bore & stroke |
| Operating pressure | Up to 350 bar |
| Power packs | AC & DC, 0.5 HP – 50 HP |
| Safety | Hose-burst protection, pressure relief options |
| Testing | 100% pressure-tested before dispatch |
| Warranty | 3 years |
Why lift builders choose us:
- Cylinders sized for your platform, travel height and speed
- Holding valves for safe, drift-free positioning
- Matched cylinder + power pack sets — no compatibility issues on site
- Replacement cylinders for existing lifts from sample or drawing
Frequently asked questions
It depends on platform size and load distribution. Share your platform dimensions and capacity — we recommend the right configuration.
Through flow-control and holding valves matched to your load, giving smooth, controlled descent.
Yes — from dimensions, photos or the old cylinder. We match mounting and stroke so installation is straightforward.
Request a quote
Share your platform capacity, travel height and quantity — get an engineered quotation.
